Learn about pet food, pet medicine, pet supplies packaging machine series

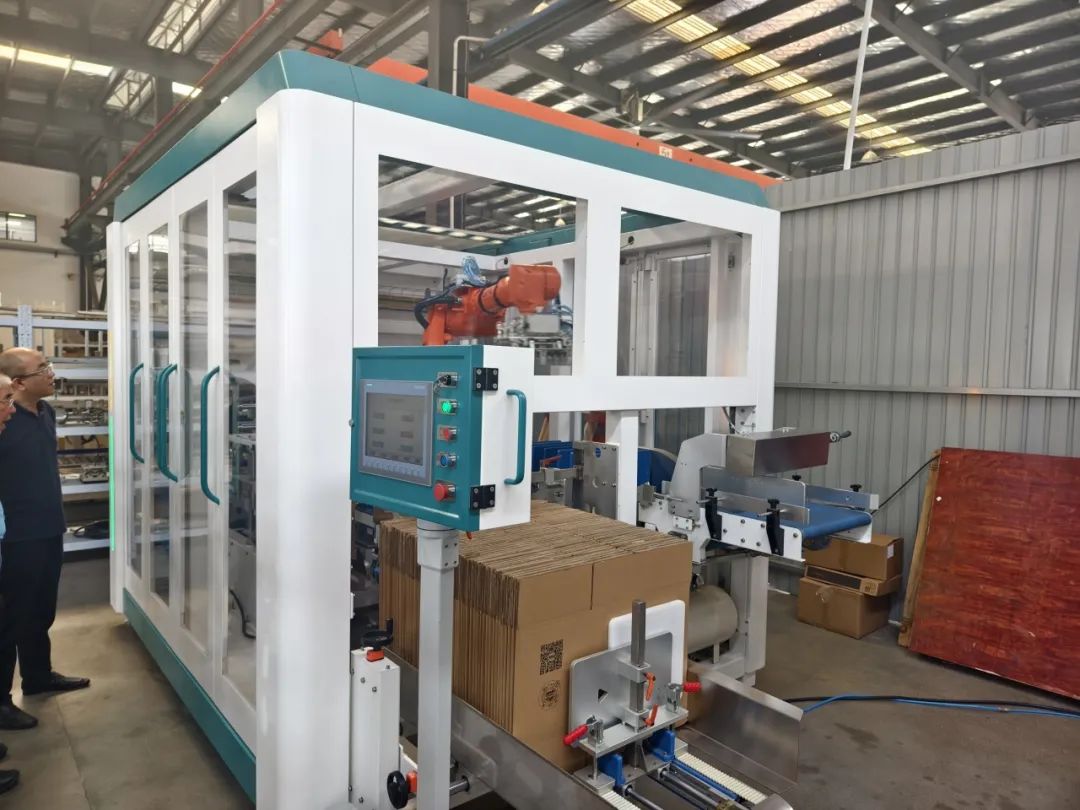

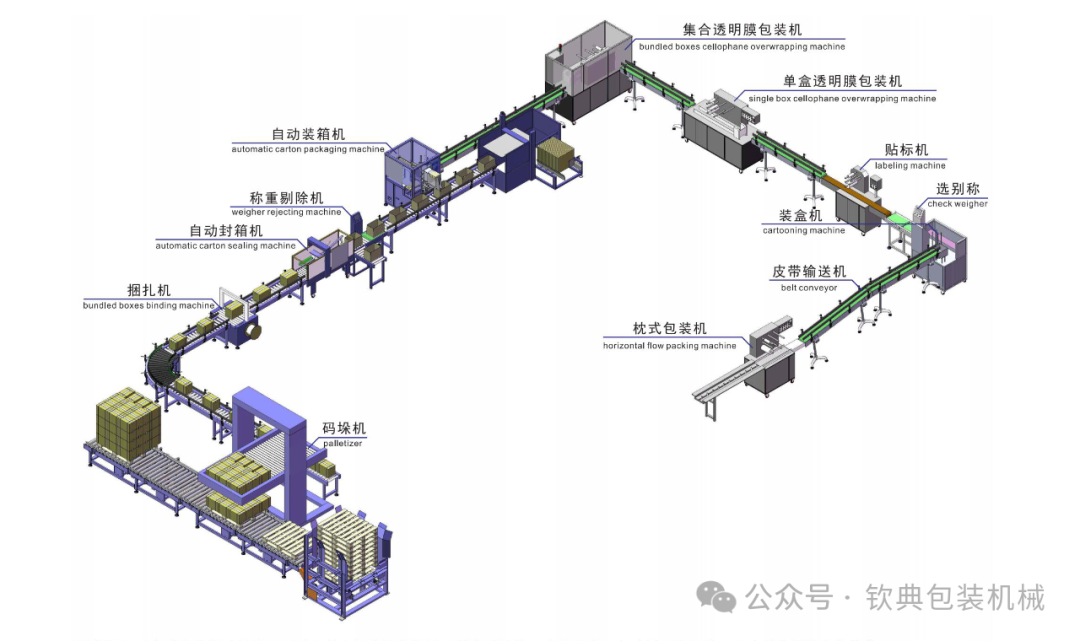

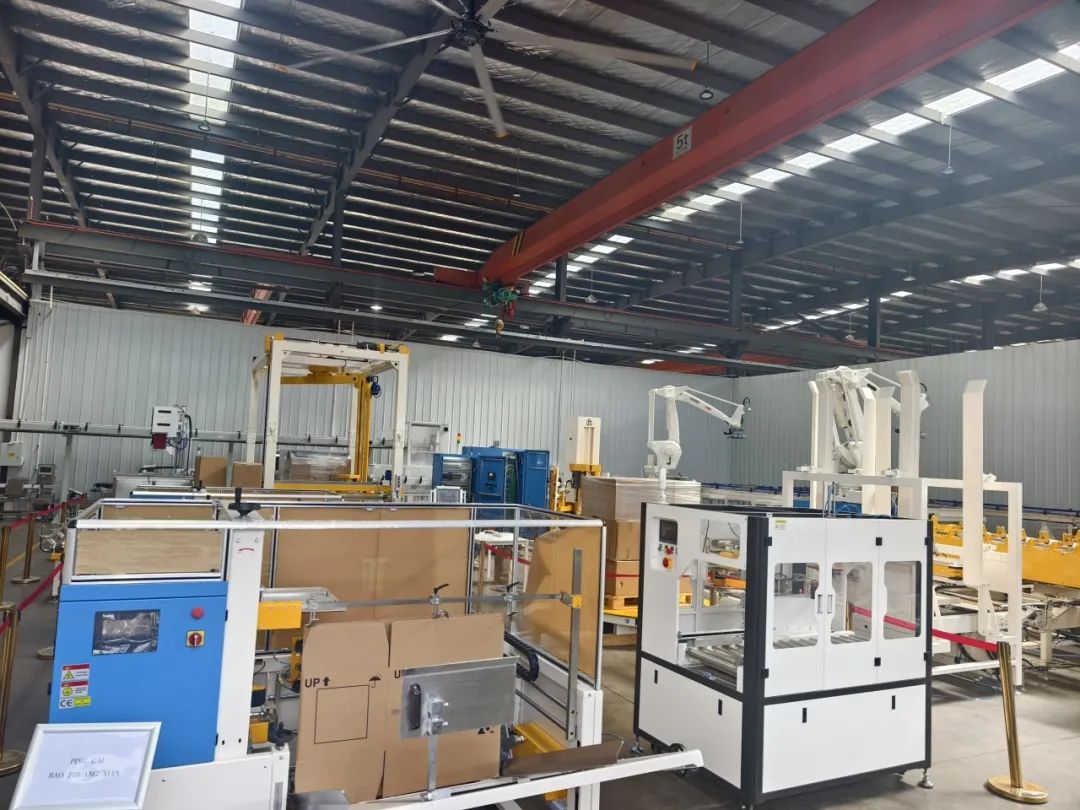

The back-end packaging line is the last link in the product production process and is mainly responsible for sorting, assembling, packaging and palletizing the products processed at the front end. It covers equipment such as carton unpacking machines, cartoning machines, carton sealing machines, winding machines, and palletizing robots. Automation solutions can be customized according to product characteristics. For example, in the food industry, biscuits are sorted and pushed into cartons by a cartoning machine, sealed by a carton sealing machine, and then stacked according to rules by a palletizing robot, reducing manual intervention throughout the process. Its core advantages are to improve packaging efficiency (for example, the high-speed line can process more than 100 products per minute), ensure packaging consistency, and realize production line data monitoring through intelligent systems. It is suitable for many industries such as food, daily chemicals, and medicine, and is a key node connecting production and logistics.

The three-side sealing and rounded corner cat strip packaging machine is specially designed for cat strip products. It is a packaging tool that combines high efficiency and exquisiteness. The equipment adopts an automated process, from film roll conveying and forming to precise and quantitative filling of cat strips, and then sealing is completed through three-sided heat sealing technology, all in one go. The unique rounded corner cutting process is its highlight, which can process the edges of the packaging into a rounded shape, which not only improves the visual beauty of the packaging, but also prevents sharp corners from scratching consumers, resulting in a safer use experience. At the same time, the packaging machine has a flexible parameter adjustment function that can adapt to the packaging needs of cat strips of different specifications. It has high production efficiency and helps companies quickly complete the cat strip packaging process and enhance market competitiveness.

Bag packaging machines are a smart choice for pet food packaging. It uses premade bag automatic grabbing technology. After the robot accurately grabs the bag, it sequentially completes the bag opening, quantitative filling, sealing and other processes, and the entire process is automated.

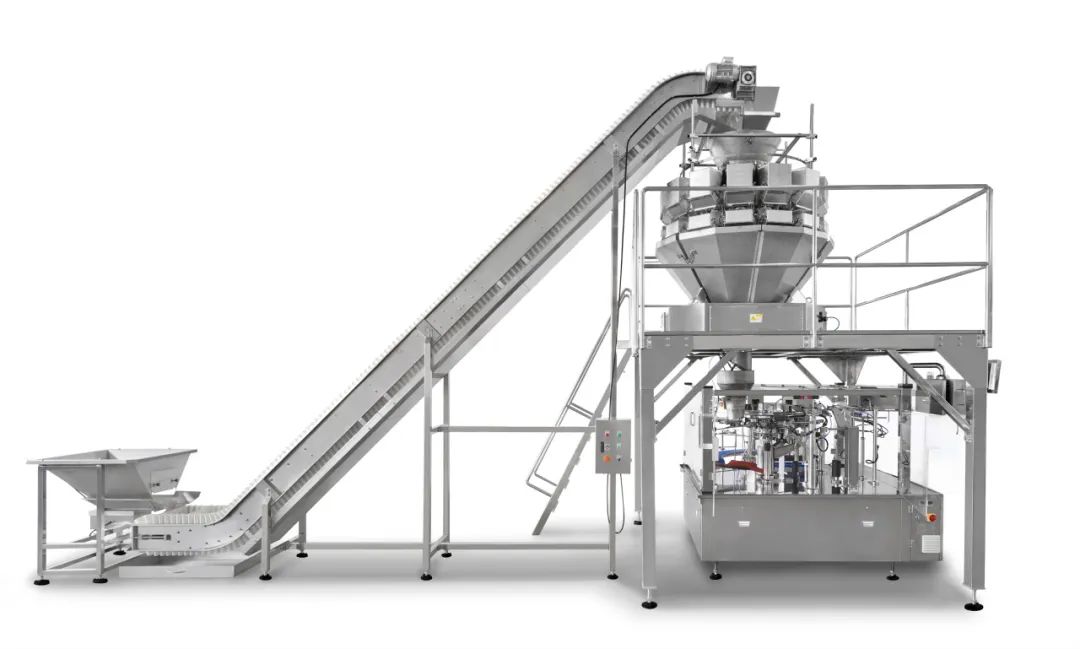

For granular pet food staples, the bag packaging machine is equipped with a double-spiral metering device. Through precise spiral blade rotation and negative pressure adsorption technology, the feeding amount can be accurately controlled to achieve high-precision filling of ±0.5g, avoiding insufficient or excessive packaging amounts.

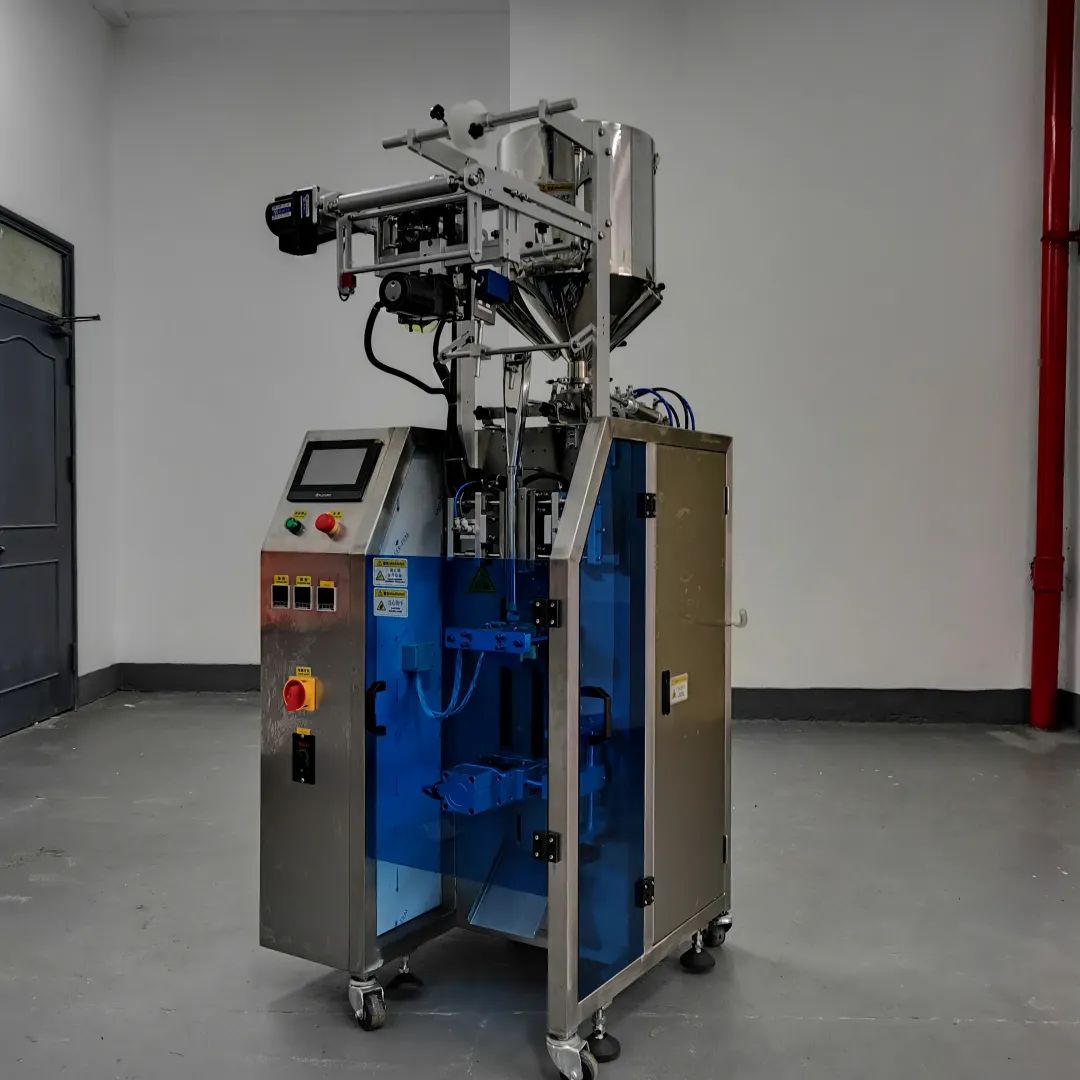

When packaging sauce liquid pet food, the plunger pump filling system comes into play. With the precise control of the plunger movement by the servo motor, it ensures a stable flow rate for each filling and makes the weight of each bag of pet sauce uniform.

When handling powdered nutrients, negative pressure weighing and filling technology effectively prevents dust from spilling, ensuring a clean production environment and achieving high-precision quantitative packaging.

For pet snacks that are prone to oxidation and deterioration, the bag vacuum packaging machine can quickly extract the air from the bag and complete the sealing after opening and filling the bag, significantly extending the shelf life of the product.

The equipment supports 30+ bag types such as three-side sealing, stand-up bags, zipper bags, special-shaped bags, etc. to meet different product needs.

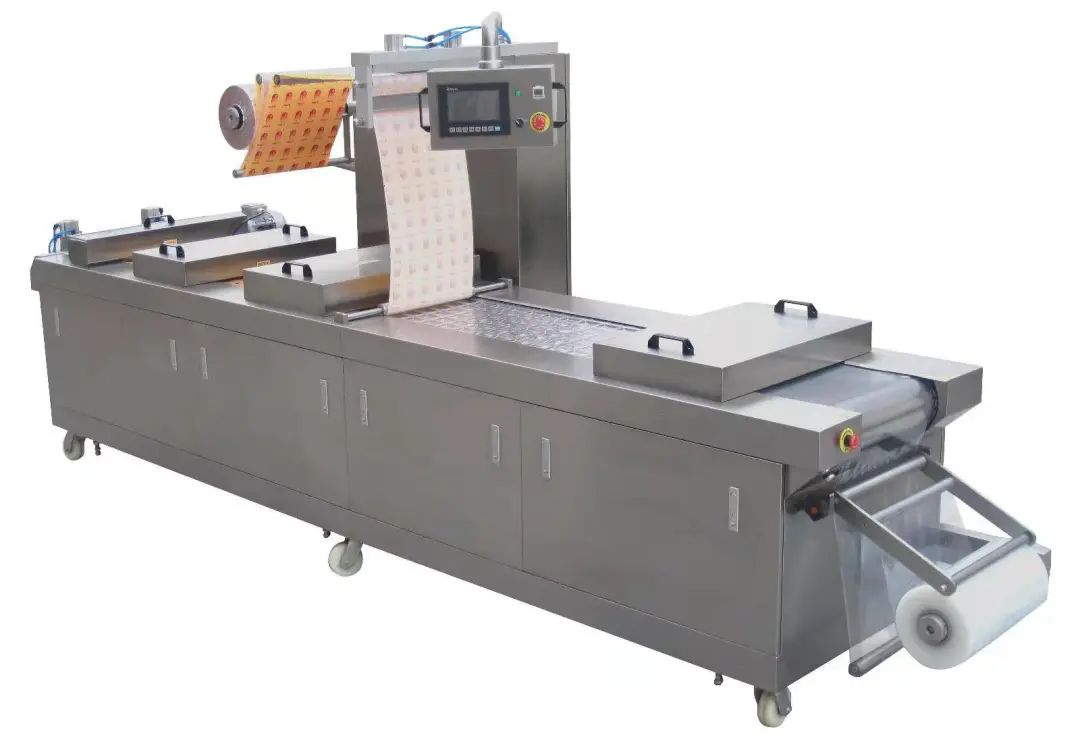

This packaging machine is innovatively integrated based on advanced stretch film forming technology and vacuum packaging technology. When working, a roll of high-strength, high-barrier stretch film is first transported to the forming mold area, and the packaging cavity is shaped through precise mechanical stretching and thermoforming processes. Then, the high-precision measuring device accurately controls the filling amount according to the food type and packaging specifications. Subsequently, the vacuum system quickly extracts the air in the packaging cavity to form a low-oxygen or anaerobic environment, which effectively inhibits oxidation reactions and microbial growth and reproduction, and extends the shelf life of the product. Stretch film tightly wraps food to prevent mechanical damage during transportation and other processes.

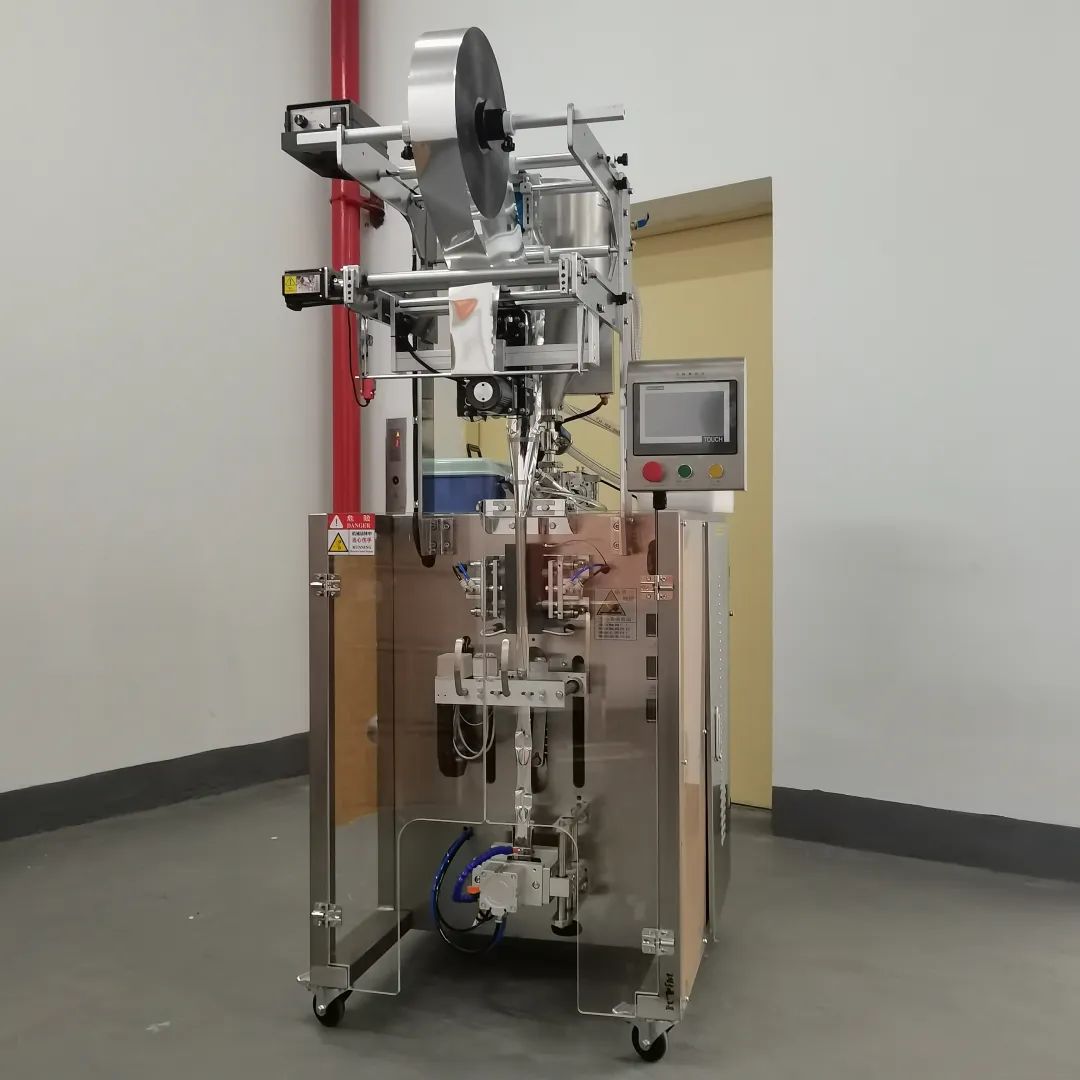

The cat food and dog food pellet packaging machine is specially designed for granular pet staple food and is the core equipment to achieve precise quantitative packaging. The packaging process is fully automated, from material transportation, metering and filling, to bag making, sealing, and cutting in one go. At the same time, it is equipped with an advanced photoelectric detection system to monitor the packaging process in real time. Once there is a shortage of materials, poor sealing, etc., it will immediately alarm and shut down, effectively ensuring the quality of product packaging. In addition, the equipment supports a variety of bag types such as three-side sealing and four-side sealing, and can also add personalized designs such as easy-tear openings and breathable holes according to corporate needs, which not only meets product quality preservation requirements, but also improves consumer experience.

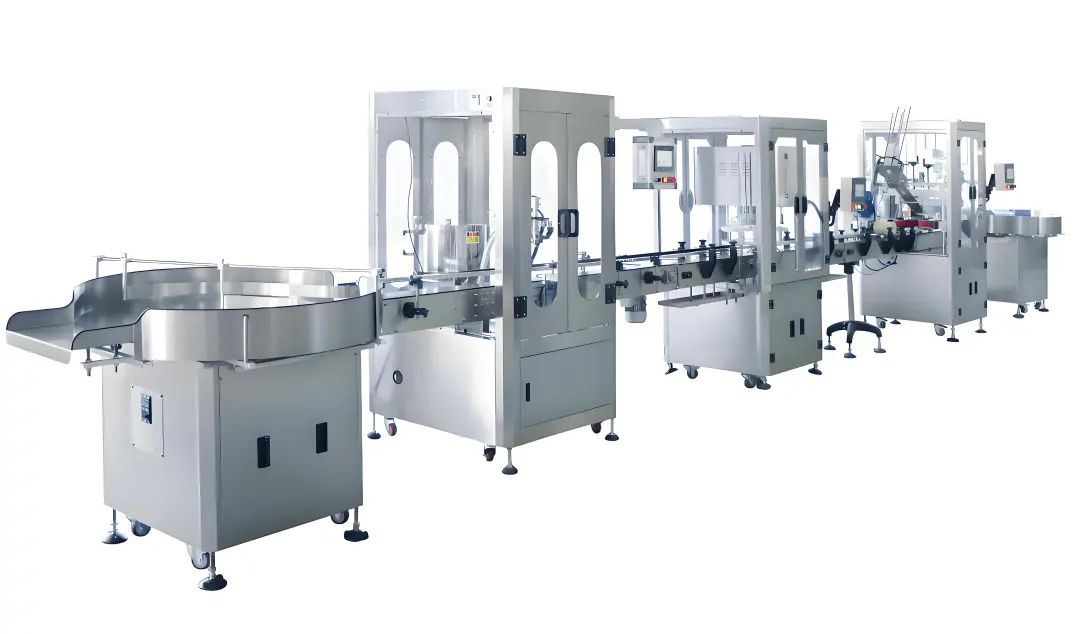

The filling production line is an automated packaging system for granules, liquids, pastes, sauces and other materials, covering the entire process from empty container supply, metering and filling, sealing and capping. The front-end bottle sorting system cooperates with the mechanical arm and the conveyor belt to quickly organize different specifications of bottle shapes and accurately position them; the weighing and filling process uses intelligent sensing technology to adapt to pet food, snacks and other materials. The cap sorting part uses a centrifugal vibration device to sort out the direction of the bottle caps; the capping machine is equipped with a torque control system that automatically adjusts the force according to the cap material to achieve a tight seal without damage. The whole process is automated and widely used in packaging scenarios such as pet food and health products.

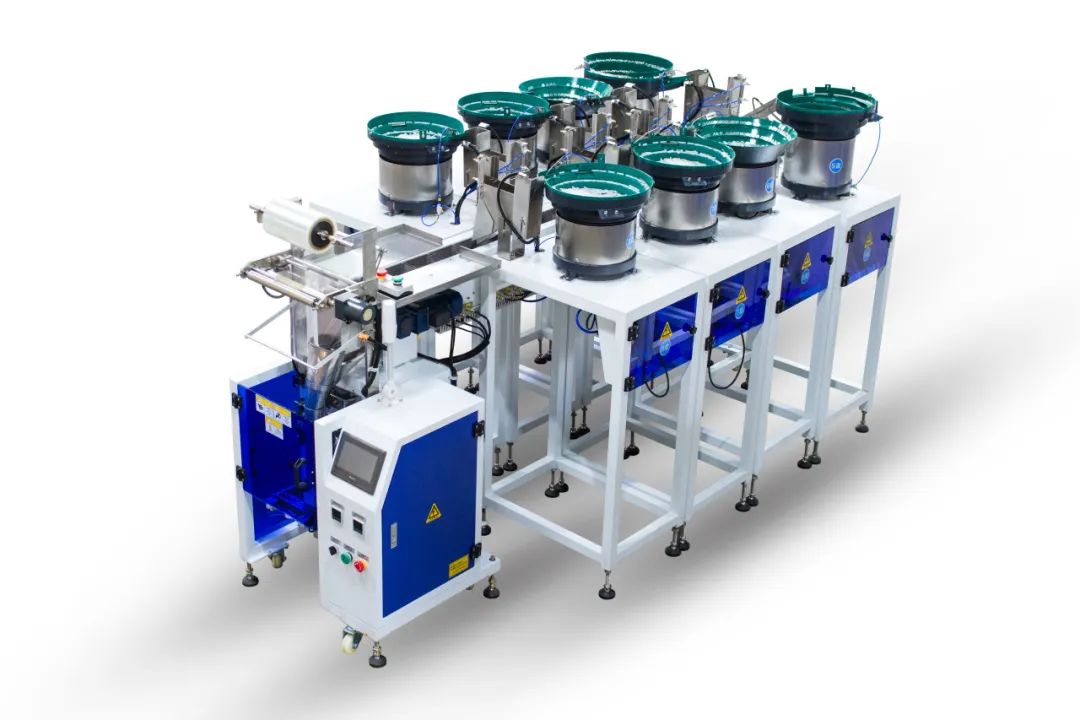

Vibrating plate counting quantitative mixing packaging machine, this equipment is specially designed for pet medicines and health product granules (such as tablets, capsules, nutritional granules). It can be configured with multiple vibrating plates at the same time, and different materials are placed in each plate. Whether it is pet vitamin granules, deworming tablets, or nutritional gummies, it can be properly processed.

When working, the vibration plate uses precise vibration frequency to send out materials one by one in an orderly manner. After being counted by precise photoelectric sensors, the materials fall directly into the chain bucket below.

After the materials are mixed in the chain bucket, they will be automatically transported to the packaging station for bag making, filling, sealing and other operations. The entire process is highly automated, which greatly improves production efficiency, reduces manual errors, ensures the quality of pet drugs and health products, and protects pet health. It is a powerful assistant in industry production.

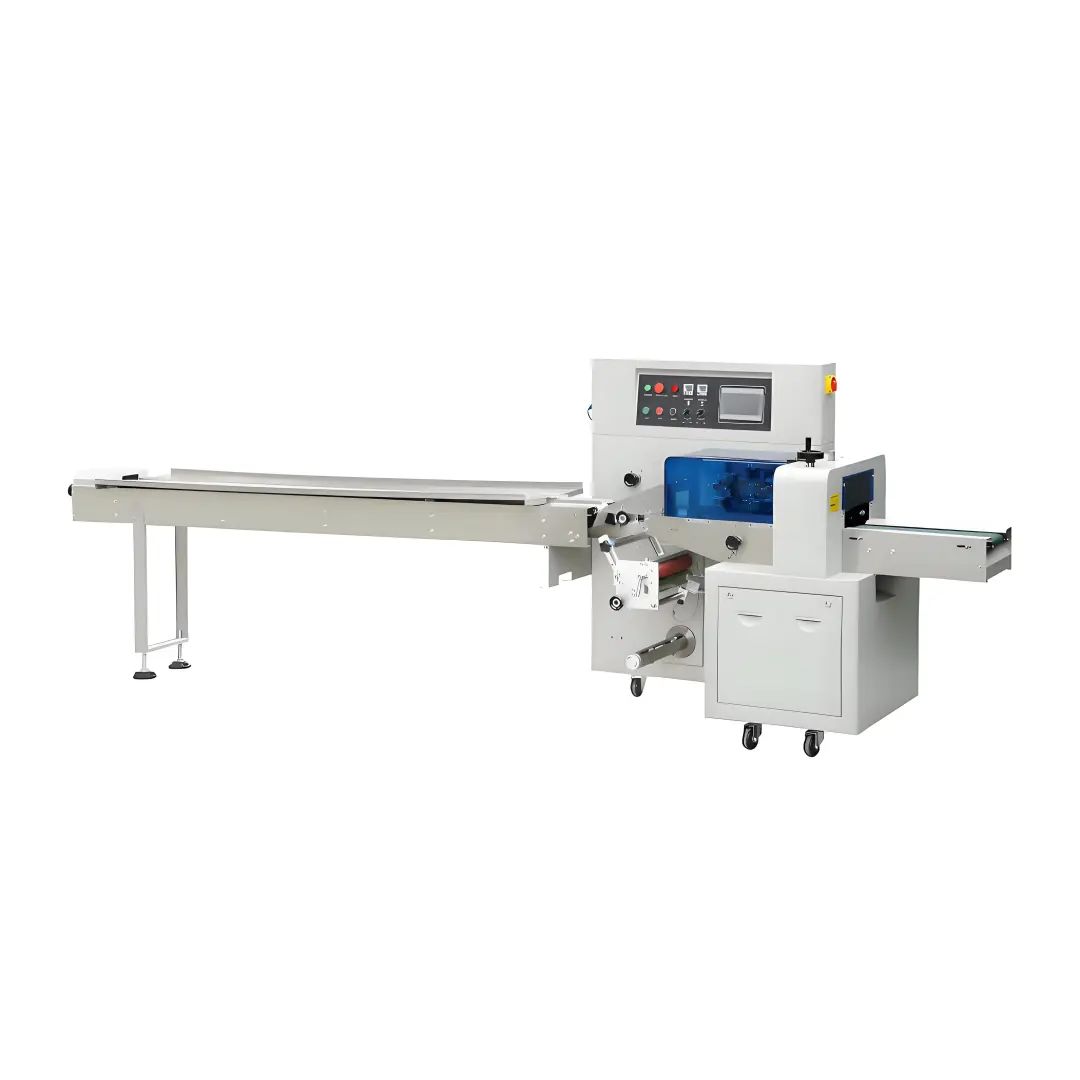

Pillow packaging machines are widely used in the field of pet product packaging, especially suitable for the packaging of pet toys, chews and other lumpy items, as well as pet snack bars. Its working principle is to use the former to make the packaging film into a tube shape. After wrapping the product, it uses vertical and horizontal sealing devices to complete the sealing. The cutting system then cuts off the continuous packaging film to form pillow-shaped packages. The product packaging is exquisite and effectively attracts consumers' attention. This equipment is equipped with dual frequency converter control, the bag length can be set and cut without adjustment, and the unloading operation saves packaging materials; high-sensitivity photoelectric eye color mark tracking ensures accurate sealing and cutting position, ensuring that product packaging is beautiful and well-sealed.

Shanghai Qindian Machinery Manufacturing Co., Ltd., a subsidiary of the Qindian brand, was founded in 2006. It is a comprehensive modern intelligent manufacturing enterprise integrating R&D, design, manufacturing, sales and after-sales. It has a team of middle and senior engineers with more than 30-50 years of practical development experience; its products mainly cover soft bag packaging in the fields of food, medicine, health products, tea, coffee, hardware, daily chemicals, auto parts, daily necessities, agricultural and sideline products, etc. The overall design scheme of automation, intelligence and unmanned is the company's key development direction. After years of hard work, the company has developed a large number of national-level patented products with independent intellectual property rights, even filling gaps in the domestic industry; it has obtained nearly 40 patents such as inventions. Our products have passed the EU CE certification, and have successively won titles such as "National High-tech Enterprise", "National Science and Technology Enterprise", "China Packaging Machine Industry Science and Technology Innovation Demonstration Base", "Shanghai Specialized New Enterprise" and "Shanghai Innovative Enterprise". The products have been sold to more than 60 countries and regions around the world, and have provided services to nearly 10,000 brands around the world. Qindian Brand owns: Shanghai Qindian Machinery Manufacturing Co., Ltd., Qindian Zhiai Internet of Things Technology (Shanghai) Co., Ltd., Hainan Univozi Import and Export International Trade Co., Ltd.

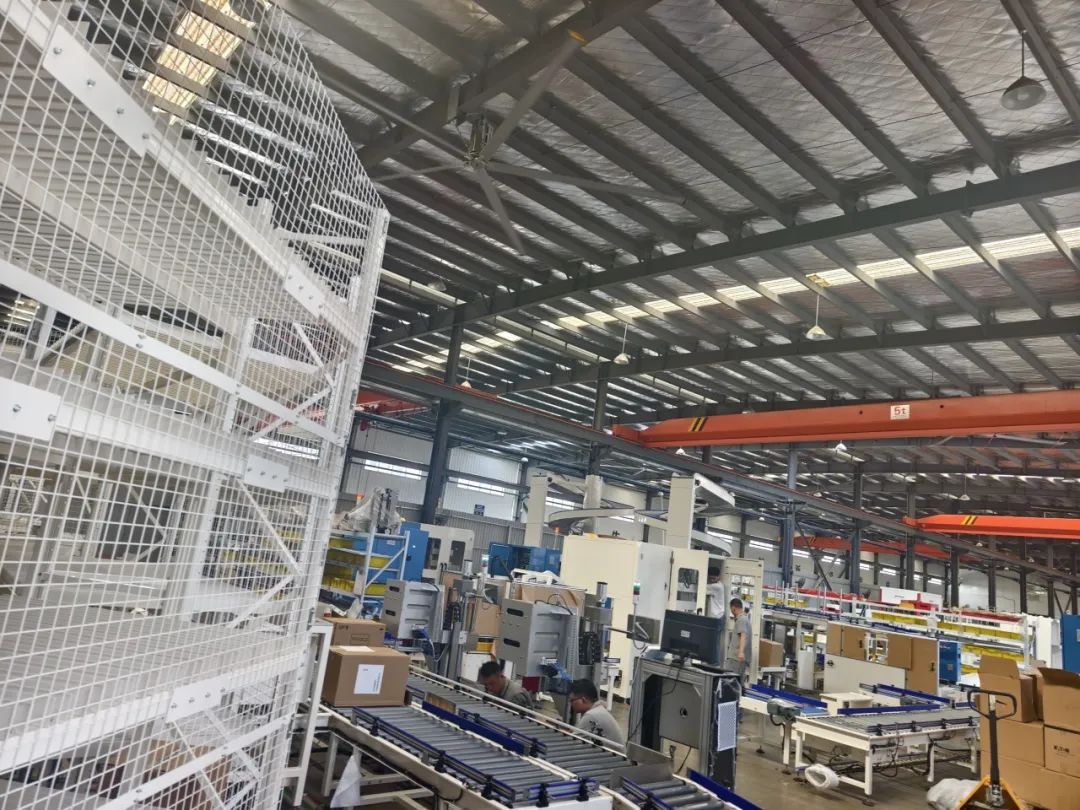

The company is headquartered in Nanxiang High-tech Industrial Park, Shanghai, with very convenient transportation, beautiful natural environment, and complete software and hardware facilities. It also has subsidiaries or branch factories in Shanghai, Jiangsu, Fujian, Guangdong, Hainan, etc., and has representative offices in Italy, the United States, and Australia.

Shanghai Qindian Machinery Manufacturing Co., Ltd. adheres to the business purpose of "quality first, customer first" and follows the work philosophy of "technological innovation, market-based". We will closely follow the national 2025 strategic direction of intelligent manufacturing and continue to make our own contributions in the fields of intelligence and unmanned operations!

Here, we would like to express our most heartfelt thanks to our new and old customers for their support and love. Shanghai Qindian Machinery Manufacturing Co., Ltd. will continue to launch high-quality products and high-quality products in the coming years to provide users at home and abroad with the most cost-effective and high-quality products. We will continue to work hard to build a team, pioneer and innovate, and forge ahead with determination.
