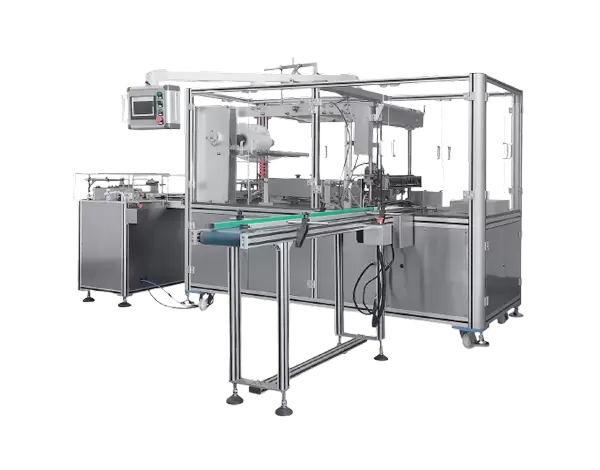

QD-2000B/D/E Transparent film overwrapping machine
Color touch screen control system, driven by three servo motors, easy to operate, high stability, high packaging efficiency, and low failure rate; The bag length, speed, and temperature can be adjusted separately, making it easy and accurate to operate.
Scan the QR code to view the product video.
Scan the QR code to view the product video.
Key Features
Anti cutting safety clutch device that does not damage the packaging.- High sensitivity photoelectric eye color marker tracking, mathematically inputting the sealing and cutting position, making the sealing and cutting position more accurate.
- Temperature independent PlD control, better suitable for various coating materials.
- Positioning shutdown function, non stick knife, and no waste of coating.
- The transmission system is simple, more reliable in operation, and easier to maintain.
- Switch to automatic reversal of the product and restart it directly for easy operation.
- Add a waste recycling device to make the packaging more aesthetically pleasing, saving about 20% -30% of materials compared to traditional folding film packaging machines
Performance Parameters
| Model | QD-2000B | QD-2000D | QD-2000E |
| Packaging speed | 12–25 Boxes/min | 12–25 Boxes/min | 30–60 Boxes/min |
| Packaging scope | L65–270 × W60–150 × H20–90mm | L100–400 × W45–240 × H20–115mm | L40–280 × W40–190 × H19–80mm |
| Dimensions | L2300 × W860 × H1670mm | L2180 × W1000 × H1500mm | L2535 × W1000 × H1800mm |
| Conveyor size | L1650 × W450 × H950mm | L1600×W270×H770mm | L1600 × W300 × H720mm |
| Weight | 800Kg | 900Kg | 880Kg |
| Total power | 6.5Kw | 6.5Kw | 6.5Kw |
| Voltage | 3N AC 380V 50Hz/60Hz | 3N AC 380V 50Hz/60Hz | 3N AC 380V 50Hz |
| Main gas path working pressure | 0.5–0.7Mpa | 0.6–0.8Mpa | 0.6–0.7Mpa |
