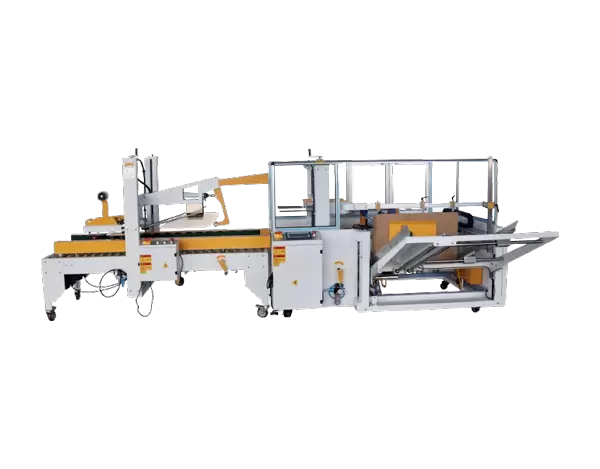

QD-40F/560FX Automatic box opening machine / sealing machine
The unboxing and sealing machine is an equipment that automatically completes the unboxing, forming, and sealing of cardboard boxes, as well as the sealing of boxes containing items. its core function is to replace manual labor and improve packaging eficiency.It is divided into two types: box machine and box seaing machine. The box opening machine is responsible for stretching and shaping the flat cardboard box and sealing the bottom, while the box sealing machine seals the toplside of the cardboard box with tape or hot melt adhesive. Widely used in industries such as e-commerce, food, and medicine,it is compatible with diferent carton sizes and can be used alone or connected to production lines.
Scan the QR code to view the product video.
Scan the QR code to view the product video.
Key Features
The unboxing and sealing machine is an equipment that automatically completes the unboxing, forming, and sealing of cardboard boxes, as well as the sealing of boxes containing items. its core function is to replace manual labor and improve packaging eficiency.- It is divided into two types: box machine and box seaing machine. The box opening machine is responsible for stretching and shaping the flat cardboard box and sealing the bottom, while the box sealing machine seals the toplside of the cardboard box with tape or hot melt adhesive.
- Widely used in industries such as e-commerce, food, and medicine,it is compatible with diferent carton sizes and can be used alone or connected to production lines.
Performance Parameters
Unpacking machine
| Box-open speed | 5–20Boxes/min |
| Carton specifications | L+W ≤ 700mm，W ≤ 300mm H+1/2W ≤ 480mm，1/2W ≤ 200mm |
| Dimensions | L3260 × W1150 × H1800mm |
| Temporary storage capacity of cardboard boxes | 70~100Pcs (Calculated based on the thickness of the cardboard box) |
| Weight | 100Kg |
| Air source | 6Kg/cm² 450NL/min |
| Table height of exit | 650–750mm |
| Tape size | 48–72mm (alternative use) |
| Power consumption | 2Kw |
Sealing machine
| Power supply | 220V/50Hz/60Hz |
| Power | 400W |
| Maximum packaging size | L600 × W500 × H500mm |
| Minimum packaging size | L200 × W150 × H130mm |
| Sealing speed | 15–30 Boxes/min |
| Tape width | 2" / 2.5" / 3" |
| Outer packaging dimensions | L1700 × W900 × H1500mm |
| Weight | 180Kg |
