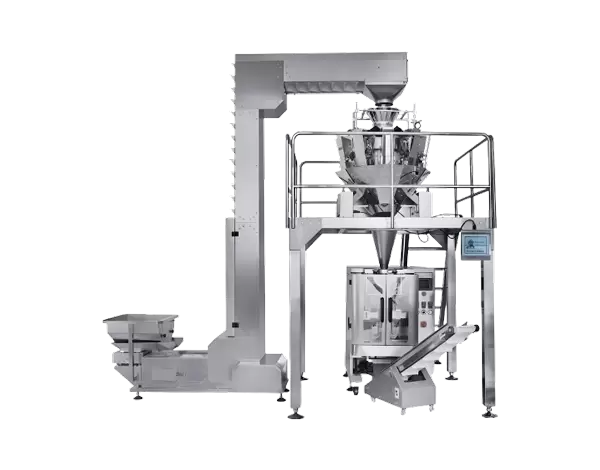

QD-420-520-620-720K Full automatic electronic scale packing machine
Suitable for automatic packing of popped food , fruit, candy, biscuit, deep frozen food, melon seeds, roasted nut, pips and other granule materials.
Scan the QR code to view the product video.
Scan the QR code to view the product video.
Key Features
Use intelligent temperature controling machine to have accurate temperature control, ensure the artistic and neat seat.- Use PLC control servo double-pull and single pull membrane, structure, super touch screen structure drives the control center, maximize the whole machine’s control precision, reliability and intelligentized level.
- This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging and products transporting automatically as well as counting.
- Have error indicating system, helping handle the trouble immediately.
- Make block bags and hanging bags, Insert corner bag according to customer's different requires.
- Measuring devices: measuring cup, linear scale, multi head combination scale.
Performance Parameters
| Model | QD-420K | QD-520K | QD-620K | QD-720K |
| Bag size | L:80-300mm W:80-200mm | L:100-350mm W:100-250mm | L:100-420mm W:140-300mm | L:120-450mm W:150-350mm |
| Packing speed | 25-80 bags/min | 25-70bags/min | 10-50Bags/min | 25-60Bags/min |
| Power | AC220V 50Hz/60Hz 3.0Kw | AC220 50Hz/60Hz 3.0Kw | AC220V/380V 50Hz/60Hz 3.5Kw | AC220V/380V 50Hz/60Hz 4.0Kw |
| Compressed air cost | 6-8Kg/m² 0.15m/min | 6-8Kg/m² 0.25m/min | 6-8Kg/m² 0.3m/min | 6-8Kg/m² 0.35m/min |
| Total weight | 450Kg | 550Kg | 700Kg | 800Kg |
| Outline dimension | L1320 × W1050 × H1750mm | L1520 × W1170 × H1770mm | L1600 × W1400 × H1900mm | L1650 × W1400 × H2050mm |
