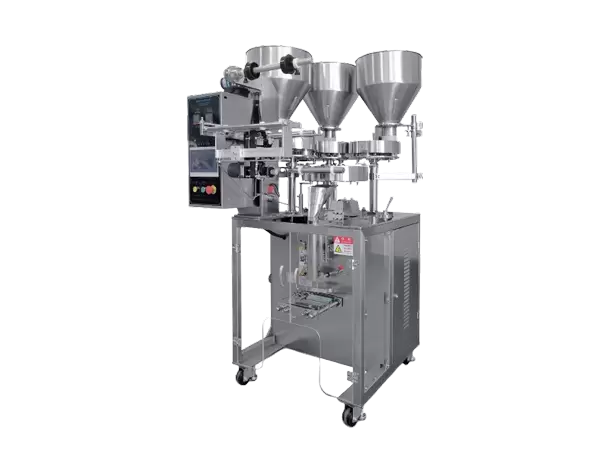

QD-65D Multi-material packing machine

Suitable for combination metering packaging of different forms of items such as granules and powders . For example: fruit cereal, dehydrated vegetable pack, whole grains, seasonings, oil tea, pounded tea and other combination products .

Scan the QR code to view the product video.

Download Datasheet

Online Consultation

Scan the QR code to view the product video.

Key Features
Performance Parameters
Contact Us

Key Features

It can automatically complete bag making, measuring, discharging, sealing, cutting, counting, and can configure printing batch numbers according to customer requirements .
Touch screen operation, PLC control, driving stepper motor to control bag length, stable performance, easy adjustment, and accurate detection . Intelligent temperature controller with PID regulation ensures that the temperature error range is controlled within 1 ℃ .
Packaging materials: polypropylene/polyethylene, aluminum foil/polyethylene, polyester/aluminum plated/polyethylene, nylon/reinforced polyethylene, paper/polyethylene, etc .
Optional equipment: coding machine, Lower cutting knife, Linking Package device .

Performance Parameters

Measuring Scope	1-100g
Bag size	L30-170×W30-140mm
Packing Speed	30-60Bags/min
Dimension	L1450 × W1050 × H1900mm
Weight	400Kg
Total Power	220V / 50Hz/60Hz / 2.0Kw
