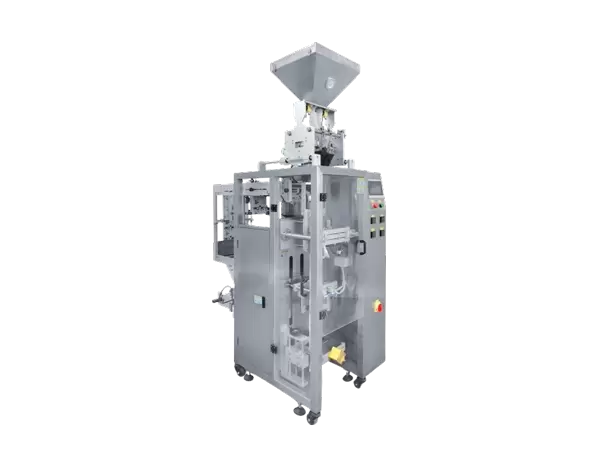

QD-220 Double line packaging machine
Widely used in the food, pharmaceutical, daily chemical, and chemical industries. Such as seeds, coffee beans, nuts, instant coffee, plastic pellets, fertilizers; Flour, milk powder, coffee powder, matcha, lingzhi powder, meal replacement powder, etc; Sauce, honey, salad dressing, oral liquid, shampoo, hand sanitizer, etc.
Scan the QR code to view the product video.
Scan the QR code to view the product video.
Key Features
Double line packaging machine is an efficient and multifunctional automated packaging equipment designed for different forms of materials such as granules, powders, and liquids.- It has a series of automatic functions such as automatic feeding, measuring, bag making, filing, sealing, printing date and finished product output, and can also achieve automatic correction of color labels according to user requirements.
- The feeding part of the machine has changed from the previous relatively simple feeding method, adopting different feedina machines according to different products, with a variety of feeding types to meet the needs of different users.
Performance Parameters
| Maximum width of packaging material | 220mm |
| Number of cuts (vertical rows) | 2line |
| Filling qualification rate | 99% |
| Power Specifications | 220V/50Hz/60Hz |
| Total power consumption | 3.5Kw |
| Compressed air pressure | 0.6Mpa |
| Compressed air consumption | 1.4m³/h |
| Noise | 78dB(A) |
| Dimensions | L1300 × W1400 × H2800mm |
| Packaging materials | Powder/granule/liquid (optional feeding method) |
| Horizontal cutting frequency | According to usage requirements, it can be infinitely adjusted |
| Weight | 600Kg |
| Automatic control capability of production process | Material filling, packaging tension, sealing temperature, cutting speed, tangent control, stepless speed regulation |
| Bag making ability | W20-55mm × L50-190mm |
| Production date, batch number | Equipped with Code printer or heat transfer printer |
| Cutting method | Flat blade cutting, serrated cutting, rounded corner cutting |
