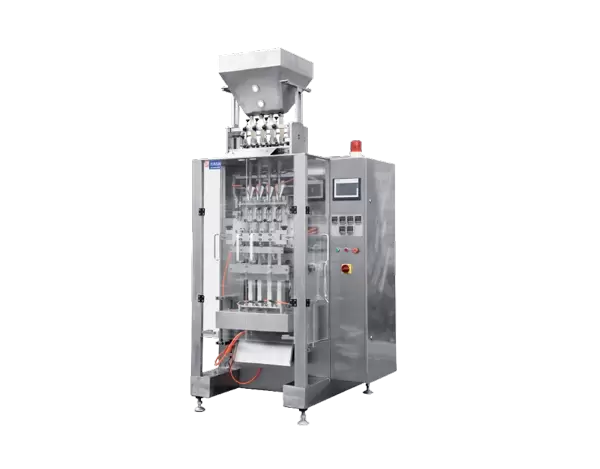

QD-12A/B/C Multi-ine qranule/liquid/powder packing machine
Color touch screen control system, driven by servo motors, easy to operate, high stability, high packaging efficiency, and low failure rate; The bag length, speed, and temperature can be adjusted separately, making it easy and accurate to operate .
Scan the QR code to view the product video.
Scan the QR code to view the product video.
Key Features
Anti cutting safety clutch device that does not damage the packaging .- High sensitivity photoelectric eye color marker tracking, mathematically inputting the sealing and cutting position, making the sealing and cutting position more accurate .
- Temperature independent PID control, better suitable for various coating materials .
- Positioning shutdown function, non stick knife, and no waste of coating .
- The transmission system is simple, more reliable in operation, and easier to maintain .
- Switch to automatic reversal of the product and restart it directly for easy operation .
- It can be equipped with a coding machine or inkjet printer, without the need for manual labor .
- Equipped with motor brake control,the equipment responds sensitively .
Performance Parameters
| Number of columns | 4–12 columns |
| Packaging speed | 20–40 cutters/min |
| Bag Size | L50–180 × W20–95mm |
| Film width | Three-side sealing/back seal: 320/480/660/950mm Four-side sealing: 400/500/600mm |
| Measurement method | Measuring cup/electronic scale/metering pump/screw |
| Sealing type | Flat incision, serrated incision, rounded incision, special-shaped incision |
| Thickness of packaging film | 0.07–0.1mm |
| Air consumption | 0.8Mpa 0.8m³/min |
| Voltage | 380V/50Hz/60Hz |
| Total weight | 1000Kg |
| Overall dimensions | L1450 × W1050 × H2700mm |
