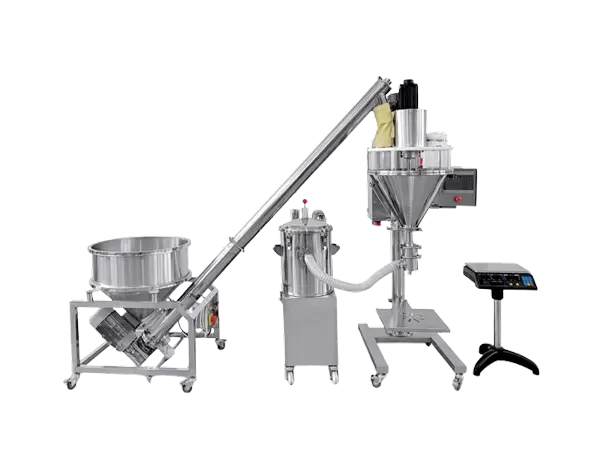

QD-5F Semi-auto powder filling machine

Scope of application: Powdered materials with certain fluidity, containers (bags, cans) are not limited.
Scan the QR code to view the product video.
Scan the QR code to view the product video.
Key Features
  • Container automatic positioning and automatic filling of materials.
  • Can, barrel, bottle and other packaging containers are applicable.
  • Install dust removal devices to create a cleaner environment.
  • Adopting stepper motor and electronic weighing technology, this machine has a slightly lower cost compared to servo motors and is economically practical.
  • Adopting spiral cutting and light control technology.
  • Specification range: The same machine can adjust and replace different specifications of cutting screws continuously within 2-5000g through the keyboard.
  • Errors caused by changes in materal density and level can be automatically tracked and corrected.
  • The photoelectric switch control only requires manual bagging, with a clean bag opening and easy sealing.
  • Can be equipped with a spiral feeder for automatic feeding control.
Performance Parameters
Packing Specification5-5000g
Packing Speed10–60Bags/min
Packaging accuracy±1%
SizeL1000 × W650 × H1900mm
Weight150Kg
Total Power2AC220V/380V/50Hz/60Hz/900W
