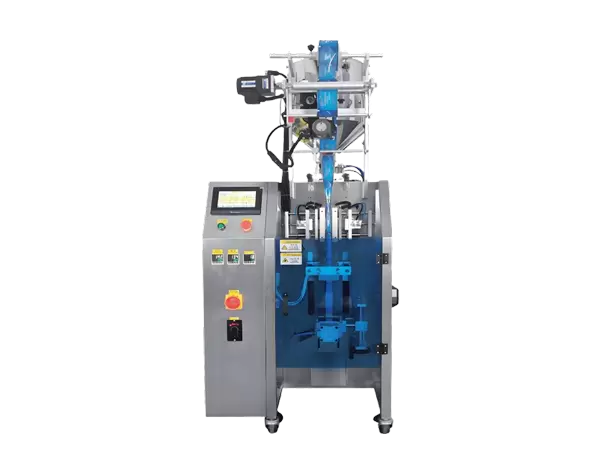

QD-65J/Y sauce/liquid fillet automatic packaging machine

It is suitable for metering and packaging of liquids, sauces and other items in the food, pharmaceutical, chemical and cosmetic industries.

Scan the QR code to view the product video.

Scan the QR code to view the product video.

Key Features

Using servo clamp-type film feeding, the sealing is smooth and has no pull marks.
It can automatically complete bag making, measuring, unloading, sealing, slitting, counting, and can be configured to print batch numbers according to customer requirements.
Touch screen operation, PLC control, driving servo motor to control the bag length, stable performance, convenient adjustment, and accurate detection.
Intelligent temperature controller and PID adjustment ensure that the temperature error range is controlled within 1°C.
Optional equipment: coding machine.

Performance Parameters

Measuring Scope	1-50g（2.6-60ml）
Bag sizeBag size	L30-180×W20-75mm
Packing Speed Packing Speed	30-60Bags/min
Dimension	L850×W1100×H1900mm
Overall machine weightWeight	400Kg
Total Power	220V / 50Hz/60Hz / 2.4Kw
