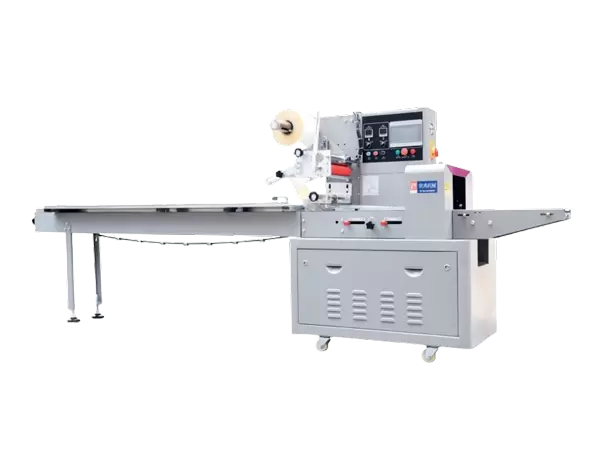

QD-250/350/450/600 Pillow packing machine (Paper from top)
Suitable for packaging various regular objects such as cookies, rice cakes, snow cakes, egg yolk pies, chocolate, bread, instant noodles, mooncakes, medicines, daily necessities,industral parts, paper boxes or trays.
Scan the QR code to view the product video.
Scan the QR code to view the product video.
Key Features
Be controlled by servo, flexible cutting and setting of bag length, time and film saveable.- Human-machine operation, convenient and quick parameter setting.
- Self diagnosis of failure function, clear failure display.
- High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
- Separate PlD control temperature, suitable for various packing materials.
- Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
- Simple driving system, reliable working and convenient maintenance.
- All the controls are achieved by software, convenient for function adiusting and upgrading.
Performance Parameters
| Model | QD-250B/D | QD-350B/D | QD-450B/D | QD-600B/D |
| Film width | Max 250mm | Max 350mm | Max 450mm | Max 590mm |
| Bag length | 65–190mm | 100–280mm | 130–450mm | 120–450mm |
| Bag width | 30–110mm | 30–160mm | 50–210mm | 100–270mm |
| Product height | Max 45mm | Max 60mm | Max 80mm | Max 100mm |
| Film roll diameter | Max 320mm | Max 320mm | Max 320mm | Max 320mm |
| Packing speed | 40–230 bags/min | 20–180Bags/min | 30–180Bags/min | 20–120Bags/min |
| Power supply | 220V/50Hz/60Hz/2.4Kw | 220V/50Hz/60Hz/2.4Kw | 220V,50Hz/60Hz,2.6Kw | 220V/50Hz/60Hz/3.2Kw |
| Machine size | L3770 × W670 × H1450mm | L3744 × W828 × H1500mm | L4020 × W820 × H1450mm | L4052 × W970 × H1412mm |
| Machine weight | 350Kg | 550Kg | 650Kg | 800Kg |
