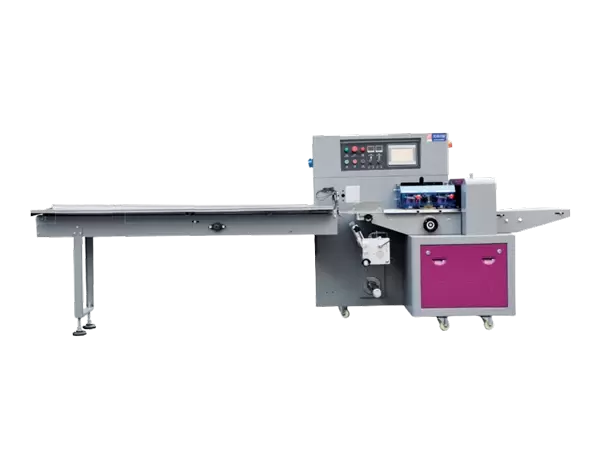

QD-250/350/450/600 Pillow packing machine (Paper from bottom)
It is suitable for packing soft, long and loose materials such as towels, paper towels, dried noodles, Chicken rolls, sausages, squid, popsicles, soft sweets, biscuits, fresh fruits, etc.
Scan the QR code to view the product video.
Scan the QR code to view the product video.
Key Features
Be controlled by servo, flexible cutting and setting of bag length, time and film saveable.- Human-machine operation, convenient and quick parameter setting.
- Self diagnosis of failure function, clear failure display.
- High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
- Separate PlD control temperature, suitable for various packing materials.
- Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
- Simple driving system, reliable working and convenient maintenance.
- All the controls are achieved by software, convenient for function adjusting and upgrading.
Performance Parameters
| Model | QD-250X | QD-350X | QD-450X | QD-600X |
| Film width | Max 250mm | Max 350mm | Max 450mm | Max 600mm |
| Bag length | infinitely long | infinitely long | infinitely long | infinitely long |
| Bag width | 30–110mm | 50–160mm | 50–200mm | 50–250mm |
| Product height | Max 40mm | Max 60mm | Max 100mm | Max 100mm |
| Film roll diameter | Max 320mm | Max 320mm | Max 320mm | Max 320mm |
| Packing speed | 40–230 bags/min | 40–150Bags/min | 40–100 bags/min | 20–80 bags/min |
| Power supply specifications | 220V/50Hz/60Hz/2.4Kw | 220V/50Hz/60Hz/2.6Kw | 220V/50Hz/60Hz/2.8Kw | 220V/50Hz/60Hz/3.2Kw |
| Machine size | L3920 × W670 × H1320mm | L4020 × W720 × H1320mm | L4020 × W845 × H1450mm | L4020 × W970 × H1500mm |
| Machine weight | 450Kg | 500Kg | 650Kg | 700Kg |
