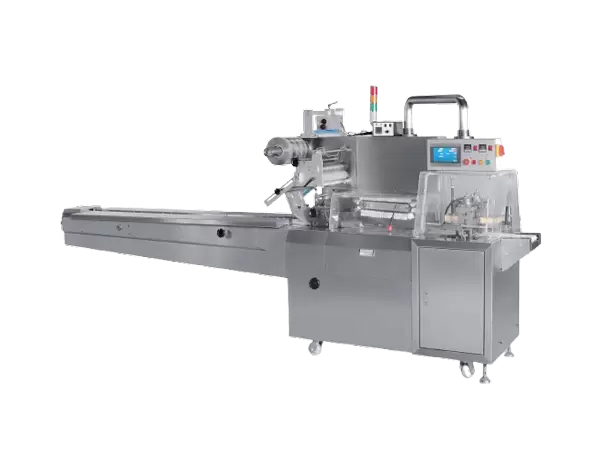

QD-450W/600W Reciprocating pillow packing machine
Suitable for packaging various regular objects such as cookies, rice cakes, snow cakes, egg yolk pies, chocolate, bread, instant noodles, mooncakes, medicines, daily necessities, industrial parts, paper boxes or trays with inserted corners.
Scan the QR code to view the product video.
Scan the QR code to view the product video.
Key Features
Servo single-chip control, the bag length can be set and cut immediately, without the need to adjust the air travel, one-step in place, saving time and film.- Human computer interface, convenient and fast parameter setting.
- Fault self diagnosis function, with clear fault display at a glance.
- High sensitivity photoelectric eye color marker tracking, digital input of sealing and cutting position, making the sealing and cutting position more accurate.
- Temperature independent PlD control, better suitable for various packaging materials.
- The reciprocating end sealing structure ensures a more secure seal and no loss of sealing film.
- End sealing and corner insertion device, making the bag shape more beautiful and enhancing the product grade.
- Positioning shutdown function, non stick knife, and no waste of coating.
- The transmission system is simple, more reliable in operation, and easier to maintain.
- All controls are implemented by software, making it easy to adjust functions and upgrade technology, and never falling behind.
Performance Parameters
| Model | QD-450W | QD-600W |
| Film width | Max 450mm | Max 600mm |
| Bag length | 120–450mm | 120–450mm |
| Bag width | 50–160mm | 50–200mm |
| Product height | 10–80mm | 10–80mm |
| Film roll diameter | Max 320mm | Max 320mm |
| Packing speed | 20–75 bags/min | 20–75 bags/min |
| Power supply | 220V/50Hz/60Hz/3.2Kw | 220V/50Hz/60Hz/3.6Kw |
| Machine size | L3980 × W860 × H1530mm | L3980 × W970 × H1530mm |
| Machine weight | 960Kg | 1160Kg |
