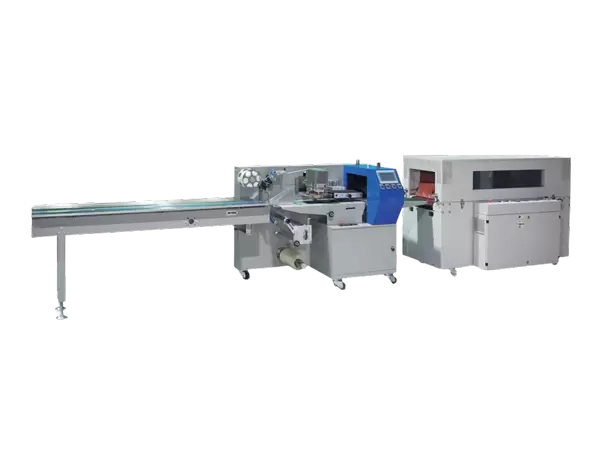

QD-590 Full servo high-speed heat shrink packing machine
Food, medicine, beverage group packaging, bowl noodles, milktea, mosquito coils, wallpaper, exercise books, filters, electrical switches, cling film, garbage bags,various stationery, industrial parts, and daily cosmetics skin packaging, etc.
Scan the QR code to view the product video.
Scan the QR code to view the product video.
Key Features
Color touch screen control system, driven by three servo motors, easy to operate, high stability, high packaging efficiency, and low failure rate; The bag length, speed, and temperature can be adiusted separately, making it easy and accurate to operate.- Anti cutting safety clutch device that does not damage the packaging.
- High sensitivity photoelectric eye color marker tracking, mathematically inputting the sealing and cutting position, making the sealing and cutting position more accurate.
- Temperature independent PlD control, better suitable for various coating materials.
- Positioning shutdown function, non stick knife, and no waste of coating.
- The transmission system is simple, more reliable in operation, and easier to maintain.
- Switch to automatic reversal of the product and restart it directly for easy operation.
- Add a waste recycling device to make the packaging more aesthetically pleasing, saving about 20% -30% of materials compared to traditional folding film packaging machines
- It can be equipped with a coding machine or inkjet printer, without the need for manual labor.
- Equipped with motor brake control, the equipment responds sensitively.
- High efficiency dual temperature zone of heat shrink furnace, efficient hot air circulation, automatic temperature control, ensuring the quality of shrinkage.
Performance Parameters
| Max Film size | ≤ 590mm | ||||
| Model | 120 | 150 | 180 | 210 | 240 |
| Packing size | L60–320mm | L100–450mm | L150–530mm | L180–600mm | L210–650mm |
| W10–200mm | W10–200mm | W10–200mm | W10–200mm | W10–250mm | |
| H5–35mm | H35–70mm | H65–100mm | H80–130mm | H100–150mm | |
| Packing speed | 30–150Bags/min | 30–150Bags/min | 30-135bags/min | 30–100 bags/min | 30–80 bags/min |
| Film type | Heat shrink film such as PVC/POF | ||||
| Power consumption | Packaging machine Packing: 4.75Kw Shrinking machine: 13.5Kw | ||||
| Power supply | Host:220V/50Hz/60Hz Shrinking:380V/50Hz/60Hz | ||||
| Dimensions | L4800 × W1170 × H1500mm | ||||
| Dimensions | L2600 × W600 × H1700mm | ||||
| Furnace size | L2300 × W250 × H200mm | ||||
| Host Weight | 760Kg | ||||
| Shrinking machine Weight | 380 Kg | ||||
