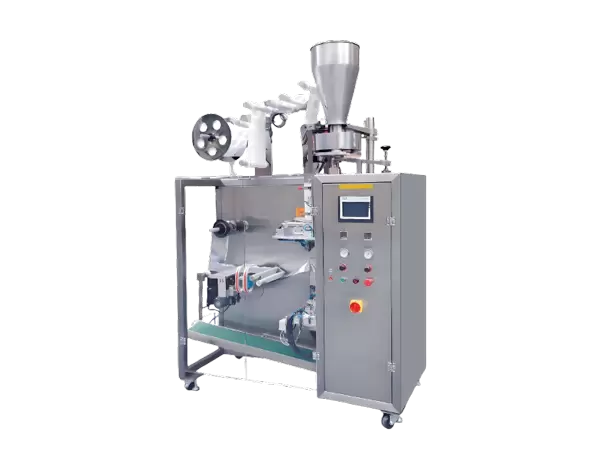

QD-18-KFC Drip coffee bag (inner & outer) packing machine

The machine is suitable for packaging inner and outer bags of coffee powder, tea leaves, herbal tea and other bagged beverages.

Scan the QR code to view the product video.

Scan the QR code to view the product video.

Key Features

This machine has automatic functions such as measuring and filling, film rolling and bag making, sealing and cutting, nitrogen filling and exhaust, and production date printing . The production process is fully automated and does not require manual segmented operations .
PLC control, Siemens touch screen human-machine interface, supports parameter setting and fault alarm, easy to operate and use.
The inner and outer bags are formed in one go and made of 304 stainless steel in contact with the material, avoiding manual contact and ensuring cleanliness and hygiene .
Inner bag area: Ultrasonic process sealing, servo motor controlled film feeding,fiber optic identification and labeling .
Outer bag part: servo motor control, clamp pull structure film pulling, intermittent heat sealing,flat edge ironing .

Performance Parameters

Measurement method	Measuring cup, multi head electronic scale, screw
Measuring Scope	5-15g
Inner bag size	L70-75×W90mm
Outer bag size	L80-130 × W80-120mm
Packing Speed	20-55bags/min
Dimension	L1250 × W760 × H2150mm
Weight	660Kg
Total Power	220V / 50Hz/60Hz / 3.7Kw
Gas source	0.8Mpa ≥ 0.6m³/min
