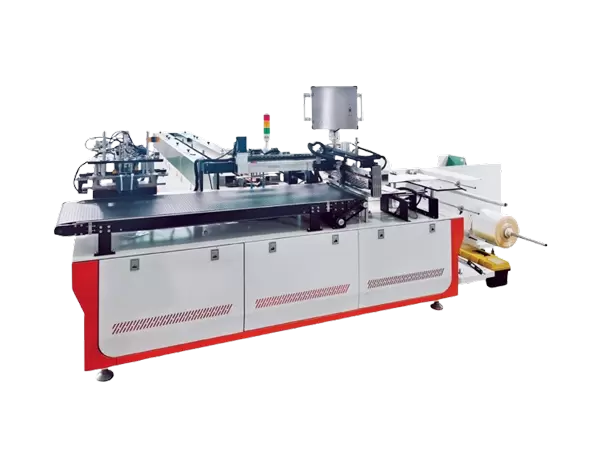

QD-35 T-type high-speed bag-making and bagging machine
Using folded film for bag making, fully automatic gluing, bag making, feeding, opening, pushing, and sealing, suitable for packaging regular products such as cards or printing paper.
Scan the QR code to view the product video.
Scan the QR code to view the product video.
Key Features
Optional paging machine can be used for automatic counting and feeding of card products, achieving more efficient production.- Adopting a servo control system, the touch screen human-machine interface displays more clearly and maintenance is easier.
- Automatically detect servo tracking, keep the bag waiting when there is no product, and save packaging materials to the maximum extent possible.
- High degree of automation, strong professionalism, high production efficiency, and low failure rate.
Performance Parameters
| Total machine power | 6–6.5Kw |
| Gas supply | 0.6–0.8Mpa, air supply pipe diameter 16mm |
| Speed Overall dimensions | L4058 × W2761 × H1505mm |
| Applicable power supply | AC220V/50HZ |
| Total weight | About 1.5T |
| Production efficiency | 20-35bags/min |
| Compatible with product size | L120–320 × W80–250 × H2–30mm |
