Fully automatic packaging overall solution for pharmaceutical and health industries

Applicable categories:

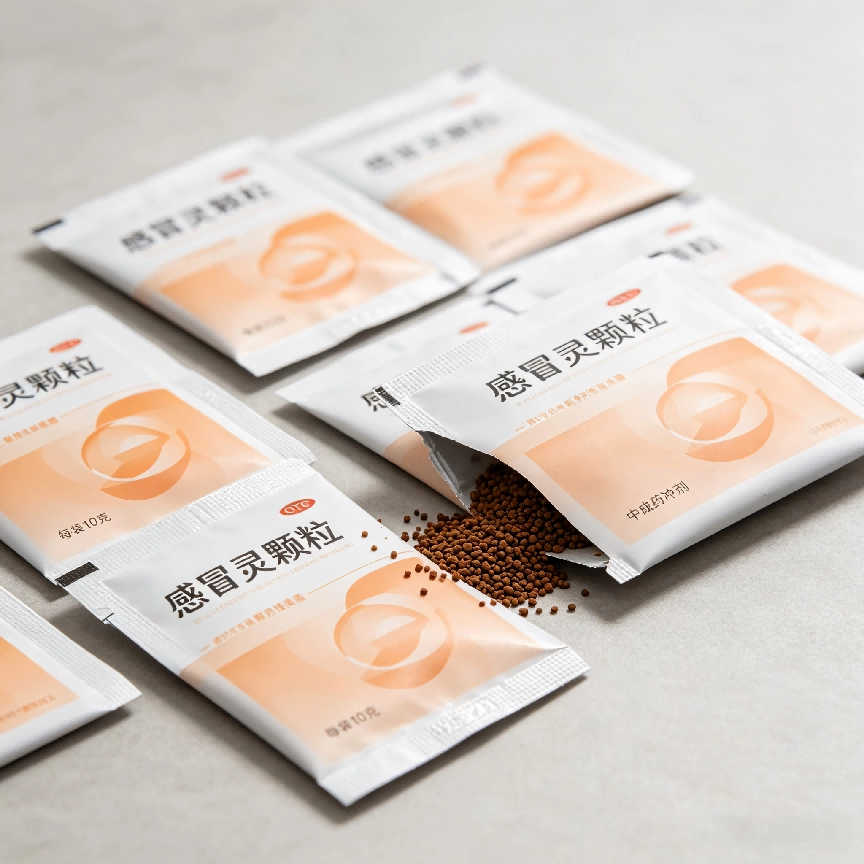

Chinese patent medicines: Ganmao Granules, Isatis Root, Xiao Bupleurum, Liuwei Dihuang Pills

Western medicine: antipyretic granules, antibiotic granules, montmorillonite powder, ingestible powder

Health products: protein powder, meal replacement powder, vitamin C powder, probiotic powder

Elimination number: Disinfectant powder, effervescent tablet powder

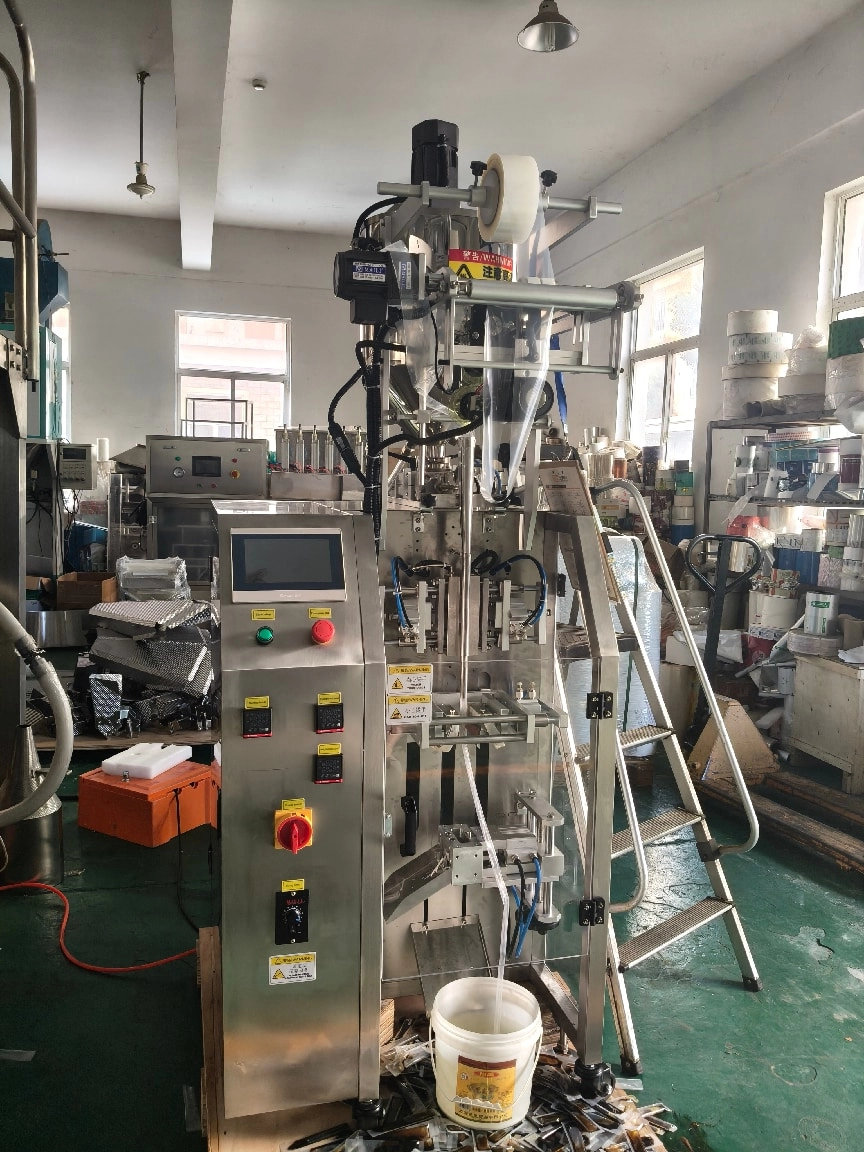

Screw metering, precise every step: high-precision stepper motor drives screw blanking + weighing feedback closed loop, metering accuracy ≤±1%. Whether it is 3g of antipyretic granules or 500g of protein powder, each bag has accurate dosage and controllable efficacy/nutrition.

All dust is collected and expensive materials do not "fly": fully enclosed unloading channel + negative pressure dust removal interface. The powder dust does not spill out, the workshop is clean, and there is zero waste of raw materials - every gram of protein powder and probiotics is the cost.

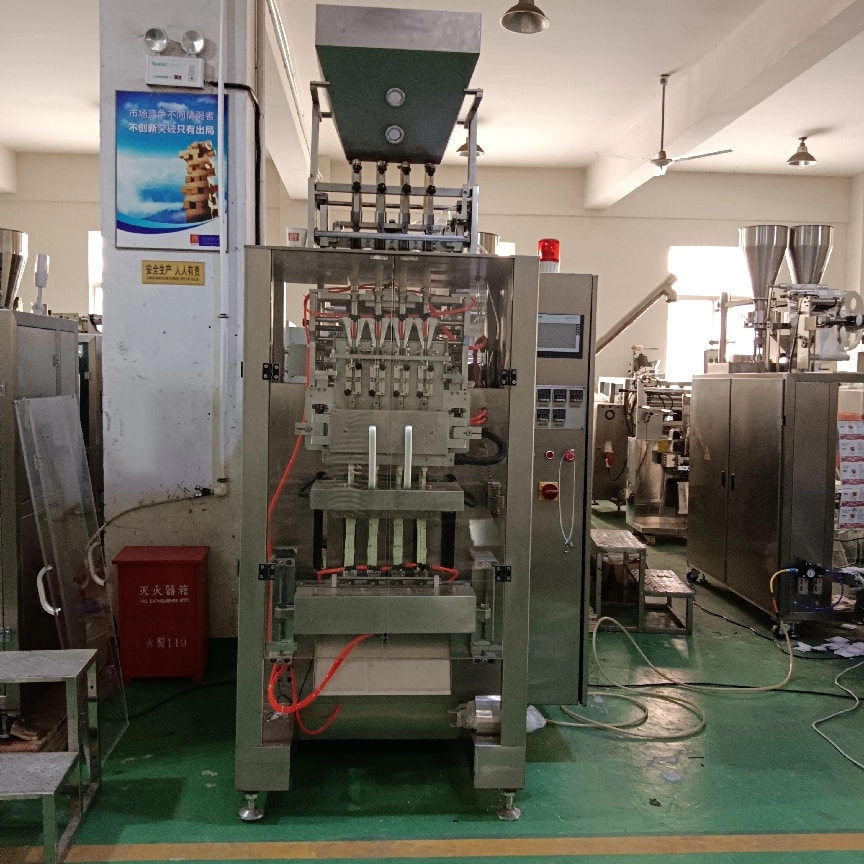

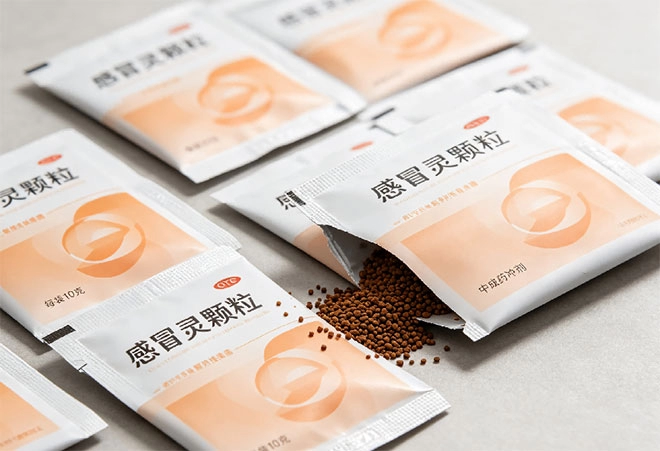

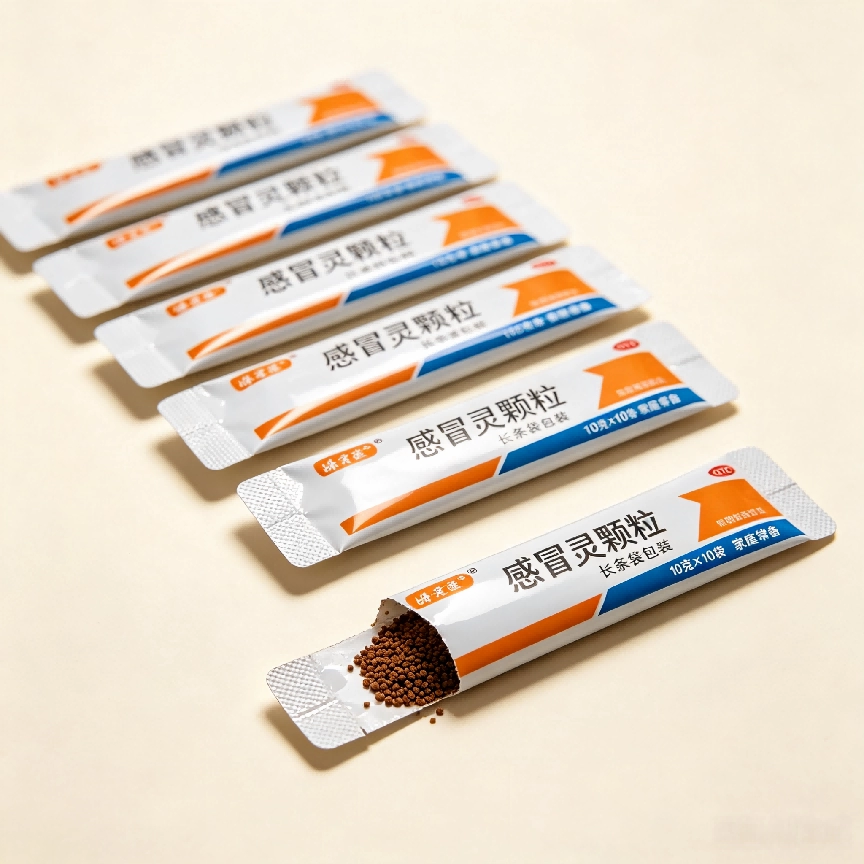

Multi-bag type adaptation: small dose (3g-15g): back-sealed strip bag/three-side-sealed small flat bag, easy to tear, convenient for patients/consumers to drink; medium and large dose (100g-500g): four-side-sealed large bag/stand-up bag, with zipper and re-sealing, first choice for family packaging

Pharmaceutical grade material + batch coding: All contact parts are made of 304/316L stainless steel, mirror polished (Ra≤0.8μm), no dead corners and easy to clean. Simultaneous thermal transfer coding, batch number, production date, expiration date, and traceability code are automatically placed on the bag, ensuring compliance without worries.

Applicable categories:

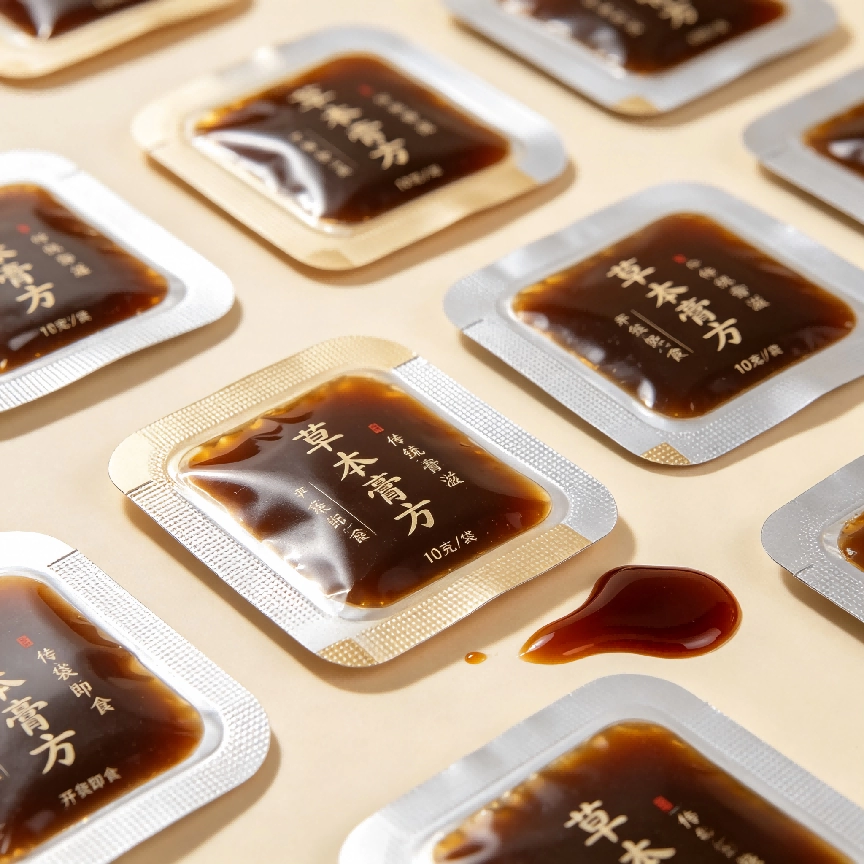

Chinese patent medicines: donkey hide gelatin ointment, Qiuli ointment, Guiling ointment, traditional Chinese medicine ointment

Western medicine/devices: topical ointments, creams, gels (such as Piyanping, erythromycin ointments)

Health products: Propolis ointment, fish oil soft capsule contents, probiotic paste supplements

Elimination brands: no-rinse disinfectant gel, antibacterial cream, hemorrhoid cream, burn cream

Piston pump filling + back-suction to prevent dripping: The large-diameter piston pump is specially adjusted for high-viscosity materials. The filling valve has a built-in suck-back function. It reverses suction at the end of filling to prevent dripping. The mouth of the tube/bag is clean and the seal is firm and does not leak.

The measurement accuracy is ±0.5%, and expensive materials are not wasted: Ointments often contain high-priced active ingredients, and every additional gram filled is a loss of profit. The volumetric metering accuracy is ≤±0.5%, and more filling and less filling can be accurately controlled.

Multi-container adaptation: hose/cup/strip bag: aluminum-plastic hose: automatic tube drop → filling → folding tail → sealing, suitable for external ointment; plastic cup/bottle: automatic cup dropping → filling → sealing → screw cap, suitable for ointment and jelly-like health products; strip composite film bag: similar to strip packaging, one at a time, portable and hygienic

CIP/SIP online cleaning: quick disassembly of the material tank pipeline + online cleaning and sterilization, no odor or cross-contamination when changing recipes/products, meeting the needs of multi-variety and small batch production.

Applicable categories:

Chinese patent medicines: decoctions, concentrated Chinese medicines, oral liquids (such as Shuanghuanglian oral liquid)

Western medicine: syrup, cough oral liquid, vitamin drops, antipyretic oral liquid

Health products: liquid calcium, fish oil oral solution, collagen drink, enzyme solution

Elimination brands: disinfectant, mouthwash, gynecological lotion, nasal spray

Precision filling of peristaltic pump/rotor pump: metering accuracy ±0.5%-1%. The peristaltic pump is suitable for small doses with high precision (such as 5ml-30ml oral liquid), and the rotor pump is suitable for medium and large flow (50ml-500ml decoction/drink).

High-temperature filling is optional, preserving freshness and sterilizing: it supports high-temperature filling at 80℃-95℃, filling while hot and sealing while hot. Traditional Chinese medicine decoctions and syrups can be used to extend the shelf life and reduce the later sterilization process.

Multi-layer composite film, light-proof and oxygen-blocking: PET/AL/PE aluminum foil composite structure, completely blocking light and oxygen. The oral liquid will not discolor or expire, and will not leak during long-distance transportation.

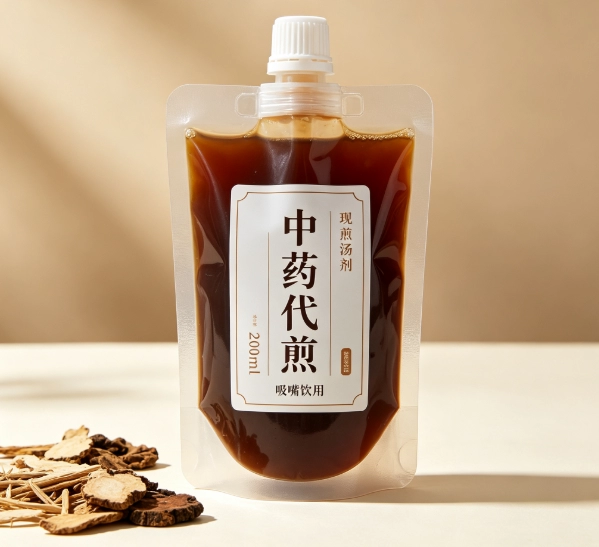

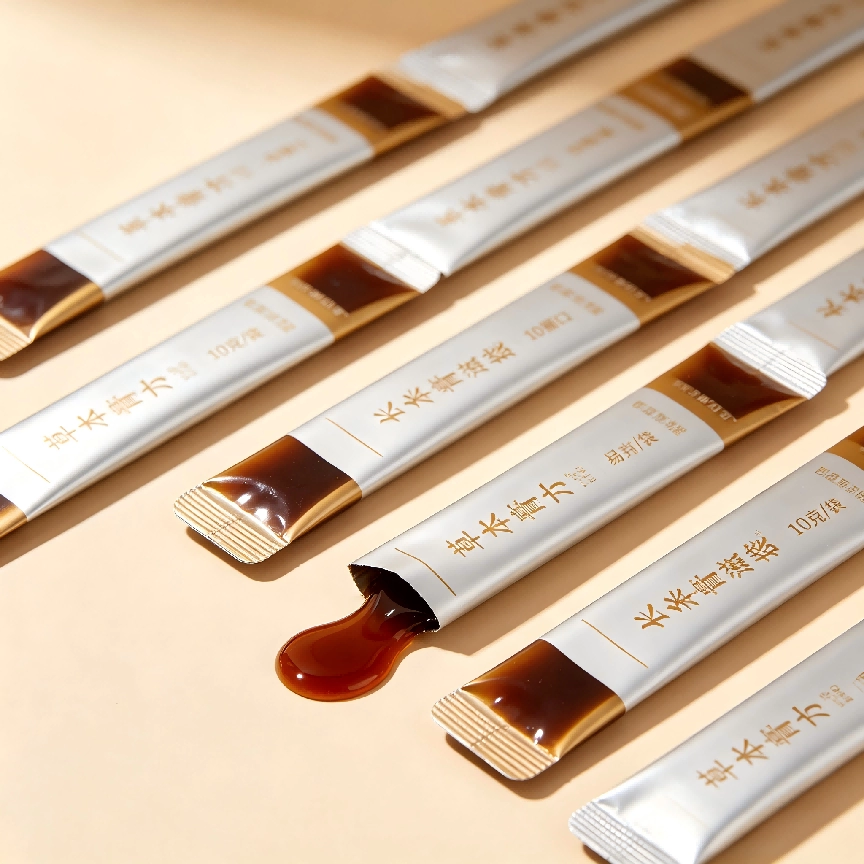

Multiple packaging forms: strip bag (10ml-100ml): one pack at a time, portable and easy to tear, the first choice for decoction; stand-up bag (100ml-500ml): can stand + can be re-sealed, suitable for home health care products and drinks; oral liquid bottle/tube: automatic bottle management → filling → capping → screw cap → coding, suitable for standard oral liquid dosage forms

We not only understand traditional Chinese medicine, but also understand all dosage forms: we have served Chinese patent medicine factories, Western medicine preparation factories, health care products companies, and consumer electronics factories - the dust of particles, the viscosity of pastes, the foaming of liquids, and the physical properties of each material. We have gone through pitfalls and adjusted parameters.

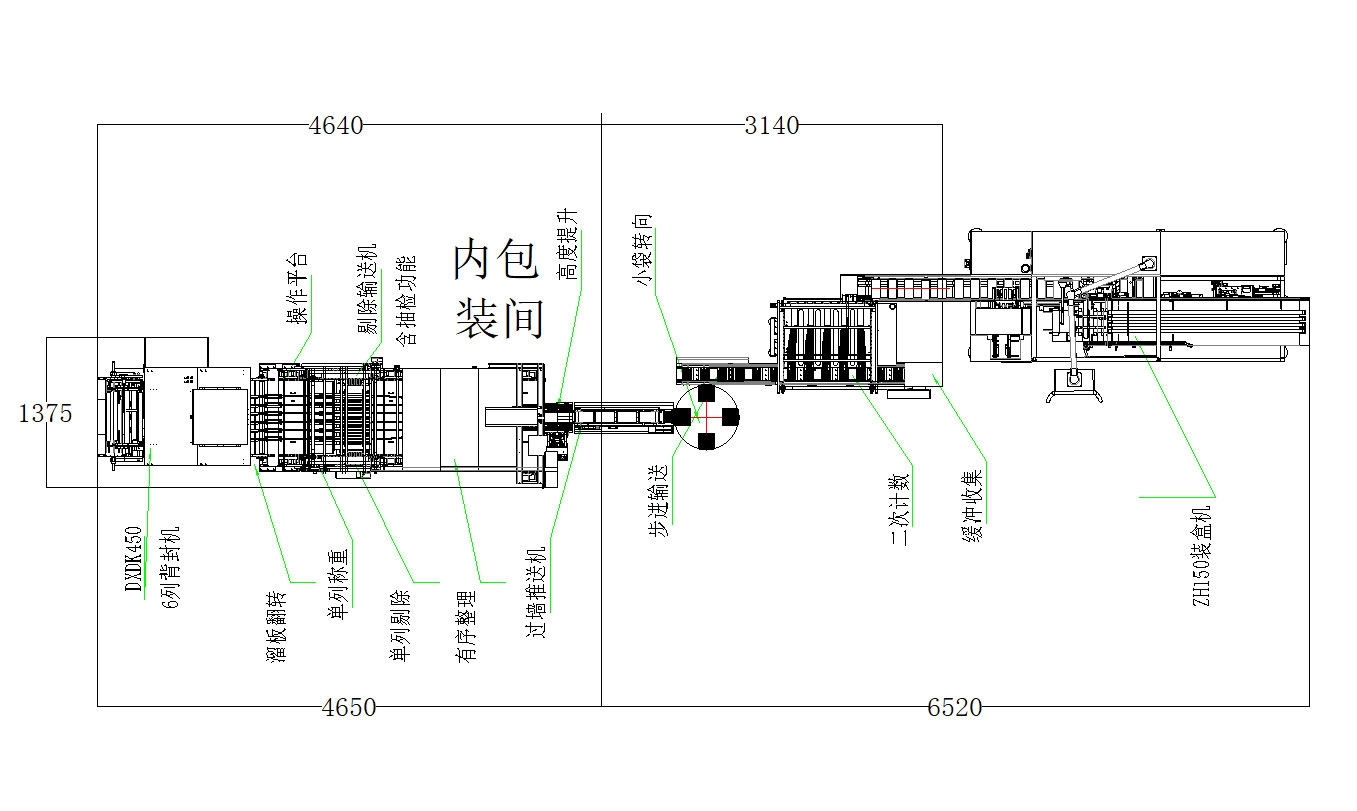

Modular combination, one line runs all categories: today we make cold granules, tomorrow we make protein powder, and the day after tomorrow we make disinfectant gel - the three lines can be purchased independently or combined into a comprehensive production line. When replacing products, only the mold and parameters are replaced, and the hardware does not need to be replaced.

Test the machine with real materials before leaving the factory: Before each piece of equipment leaves the factory, it runs continuously for 72 hours with real materials provided by the customer to verify the measurement accuracy, filling stability, and cleaning effect. Go to the factory and put into production directly, no need to lie down.

Full support for compliance documents: Provide free equipment DQ/IQ/OQ/PQ verification document templates to assist companies in passing GMP certification, SC certification, and ISO audits. The after-sales team understands pharmaceutical machine regulations and does not just repair machines.

From the accuracy of the antipyretic granules, to the leak-proof disinfectant gel, to the light-proof preservation of the oral liquid - every dose of the product is worthy of its efficacy and safety standards.
